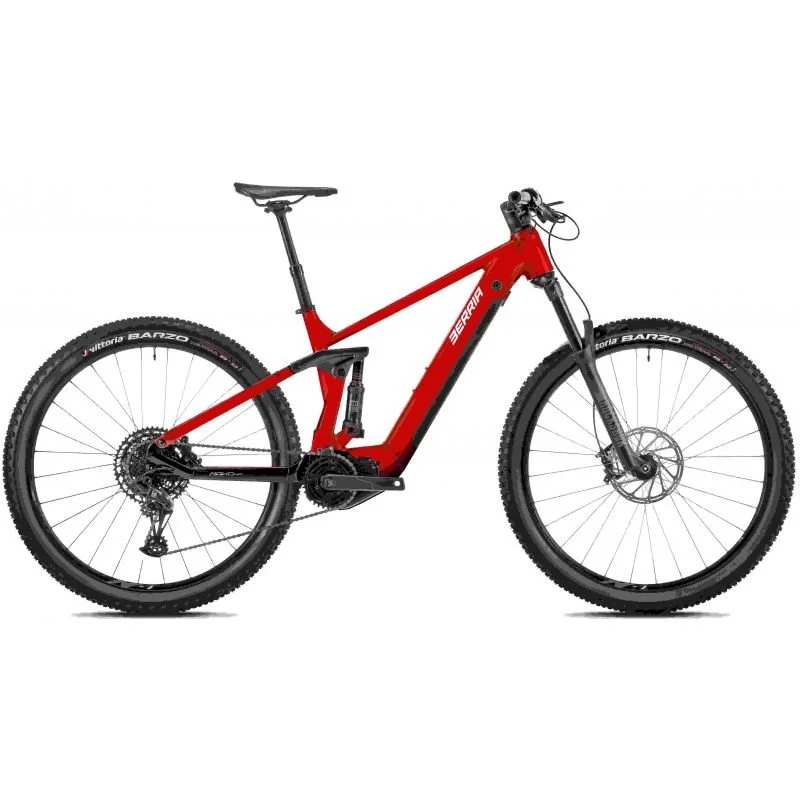

Berria Mako Hybrid HP 6 2024
ESPECIFICACIONES
Cuadro
Mako Hybrid HP, adjustable Geometry with Flip Chip System, Aluminum 6061 PCP Precision Casting Process, Full internal cable system ICS2, Thru axle Boost 12x148mm
Motor
BAFANG M-SERIES 510, Nominal performances 250W - 60Nm, Peak performance 500W - 95 Nm, Q factor 177mm
Batería
PORTAPOWER 720Wh 36V 20Ah, Cells SAMSUNG INR21700-50E, 3960g
Pantalla
BAFANG DP C24X DISPLAY LCD, 15 features, USB port, Bluetooth comunication (DP C421), Bafang GO App
Cargador
Porta Power charger 220-240V 3A
Horquilla
Rock Shox35 GOLD RL, Motion Control, 15x110mm Maxle Stealth, Tapered steerer, Rake 44mm, 35mm straight wall STEEL Fast Black, peso 2377g, 150mm recorrido
Material
Triple Butted System
Manillar
Avanforce 2, 31,8mm, wide 780mm
Direcciónintegrated OH2S 1-1/2" - 1-1.8"
Potencia
Avanforce ICS2 MTB, 0°, Ø31,8, 60-80mm
Tija Sillin
TRANZX JD-YSPJL Aluminum 7075-T6, 0° offset, 31,6 x 421mm, 125mm recorrido
Sillin
ESSAX ERA VARILLA ACERO
Patilla
UDH Universal Derailleur Hanger
Amortiguador
Rock Shox Deluxe SELECT R BERRIA MAKO HYBRID Trail Custom, Debon Air, Trunion 205X57,5mm, 148mm recorrido
Cambio
SRAM NX Eagle, 12 Velocidades
Manetas
SRAM SX Eagle Trigger
Piñones
SRAM XG1210, 11-50T
Cadena
SRAM SX Eagle CN-EAGL-SX-A1
Bielas
Bafang, aluminum, 34T, 165-170 mm
Frenos
SRAM DB8, 4 pistons, mineral oil, Disc 180/F 160/R
Neumático
FRONT Vittoria Agarro 2.6"X 29", Tubeless ready, GRAPHENE 2.0, 120 TPI, peso 970g / REAR Vittoria Barzo 2.6"X 29", Tubeless ready, GRAPHENE 2.0, 120 TPI, peso 820g
Rueda
FULCRUM E-METAL 700 , alloy, TLR, 30mm internal width, peso 2470g - 28(front) 28 (rear), Straight Pull Spokes 2,2-2 mm
